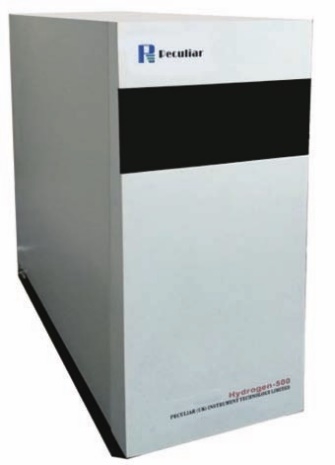

High purity hydrogen generator（Gas GC expert）

Main technical parameters

◎ Hydrogen Purity: 99.9999%

◎ hydrogen dew point: - 65 ℃ (about 3ppm)

◎ hydrogen flow: 300cc / min,

◎ output pressure: 0-0.6mpa

◎ pressure stability: < 0.001mpa

◎ power supply: 220V ± 10%, 50Hz

◎ power consumption: 150W

◎ overall dimension: 450 ×420 × 180mm 【Hydrogen-500S】

◎ net weight: About 14kg [hydrogen-500s ]

Instrument characteristics

◎ SPE solid electrolyte technology is adopted;

◎ directly electrolyze pure water without alkali to effectively protect the chromatographic column;

◎ the ion-exchange membrane is developed by peculiar in the UK; Nafion (osmotic membrane technology) and Pressure Swing Adsorption Dehydration Technology (patented technology) are adopted to make hydrogen purification more thorough,To produce hydrogen with purity of 99.9999% to ensure the reproducibility of the results.

◎ British pecuriar silicone rubber ring (low sulfur content) is used inside the instrument to effectively improve gas quality and ensure stable GC baseline;

◎ pressure and flow are controlled by integrated microcomputer;

◎ automatic water level control, automatic shutdown in case of water shortage, automatic water replenishment function. When the water volume of hydrogen-500s (E) is less than 15%, the external water tank will automatically replenish water without shutdown. Effectively protect the electrolytic cell and prolong its service life;

◎ automatic detection of air leakage;

◎ compact design, small occupied space;

◎ environmental protection filter, easy installation and operation;

◎ it can meet the use of GC produced by any manufacturer of any model.
