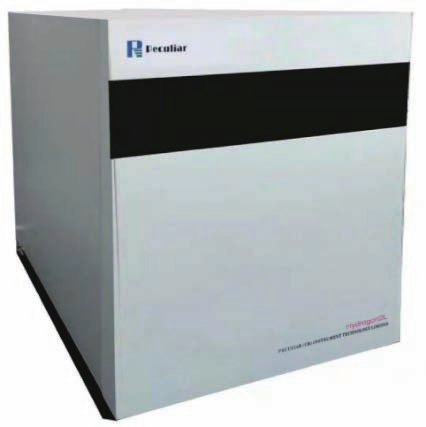

High purity hydrogen generator（Gas GC expert）
Description:the ion-exchange membrane is developed by peculiar in the UK; Nafion (osmotic membrane technology) and Pressure Swing Adsorption Dehydration Technology (patented technology) are adopted to make hydrogen purification more thorough,To produce hydrogen with purity of 99.9999% to ensure the reproducibility of the results.
Product model:Hydrogen-1000S
Main technical parameters
◎ Hydrogen Purity: 99.9999%
◎ hydrogen dew point: - 65 ℃ (about 3ppm)
◎ hydrogen flow: 1000cc / min,
◎ output pressure: 0-0.6mpa
◎ pressure stability: < 0.001mpa
◎ power supply: 220V ± 10%, 50Hz
◎ power consumption: 150W
◎ overall dimension: 450 ×420 × 400mm 【Hydrogen-1200S】
◎ net weight: About 18kg [hydrogen-1200s ]
Instrument characteristics
◎ SPE solid electrolyte technology is adopted;
◎ directly electrolyze pure water without alkali to effectively protect the chromatographic column;
◎ the ion-exchange membrane is developed by peculiar in the UK; Nafion (osmotic membrane technology) and Pressure Swing Adsorption Dehydration Technology (patented technology) are adopted to make hydrogen purification more thorough,To produce hydrogen with purity of 99.9999% to ensure the reproducibility of the results.
◎ British pecuriar silicone rubber ring (low sulfur content) is used inside the instrument to effectively improve gas quality and ensure stable GC baseline;
◎ pressure and flow are controlled by integrated microcomputer;
◎ automatic water level control, automatic shutdown in case of water shortage, automatic water replenishment function. When the water volume of hydrogen-500s (E) is less than 15%, the external water tank will automatically replenish water without shutdown. Effectively protect the electrolytic cell and prolong its service life;
◎ automatic detection of air leakage;
◎ compact design, small occupied space;
◎ environmental protection filter, easy installation and operation;
◎ it can meet the use of GC produced by any manufacturer of any model.
