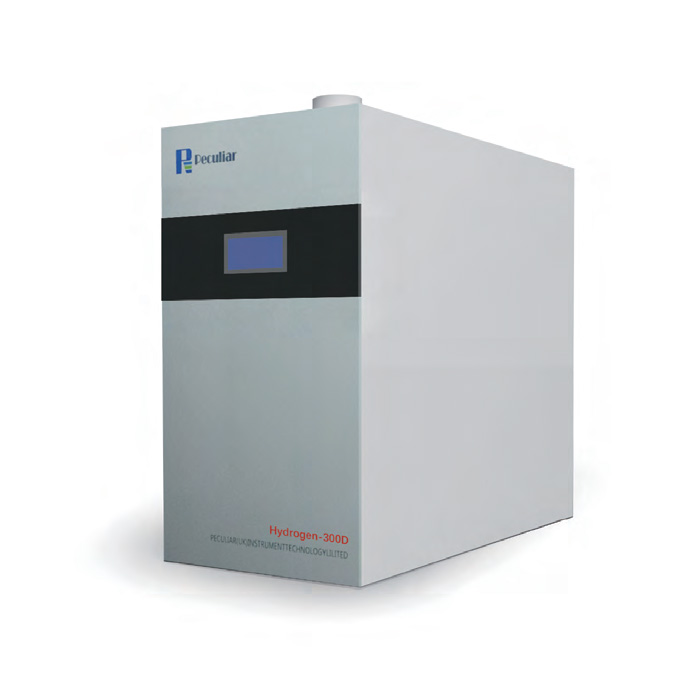

High-purity hydrogen generator-Hydrogen-300D

The Peculiar series of hydrogen generators can continuously and reliably produce hydrogen gas with extremely high purity, greater than 99.999%. This eliminates the need for expensive and hazardous high-pressure hydrogen cylinders in the laboratory. The entire process only requires deionized water and power supply to generate hydrogen, with a single water refill sustaining operation for 20 days, making it cost-effective. The safety and ease of use of the hydrogen generators have replaced the dangerous high-pressure hydrogen cylinders. Hydrogen is produced on demand and in appropriate quantities, maintaining a safe storage volume of hydrogen.

TECHNICAL PARAMETERS

◎ Hydrogen Purity:99.999%

◎ Hydrogen dew point :-65℃(About 3ppm)

◎ Hydrogen flow rate: 300cc/min、500cc/min ◎ Output pressure:0-0.4Mpa (4bar，60psi)

◎ Stress stability:<0.001MPa

◎ Power supply: 220V±10%，50Hz

◎ Power consumption:150W

◎ External dimensions:450X420X180mm 【Hydrogen-300D】

◎ Net weight:About 14Kg   【Hydrogen-500D】

◎ Water consumption:0.45L/day

INSTRUMENT FEATURES

◎ Adopt PEM Technology

◎ Directly electrolyze pure water without using alkali effectively protects the chromatog raphy column.

◎ Adopting the ion membrane developed by Peculiar in the UK to ensure the reproduci bility of results.

◎ The instrument uses British Peculiar silicone rubber rings (with low sulfur content) int ernally, effectively improving gas quality and ensuring stable GC baselines.

◎ Both pressure and flow are controlled by an integrated microcomputer.

◎ Automatic water level control, when there is a shortage of water, the machine will aut  omatically shutdown. When the Hydrogen-300D water level drops below 15%, an alarm will sound without the need to stop the machine for refilling. This effectively protects th e electrolytic cell and extends its service life.

◎ Automatic leak detection

◎ Compact design, takes up little space.

◎ Environmental filter, easy to install and operate.

APPLICATION SCENARIOS

◎ GC and GC-MS as carrier gases

◎ GC-FID/NPD(FTD)/FPD ◎ICP-MS collision gas

◎ CVD semiconductor applications
