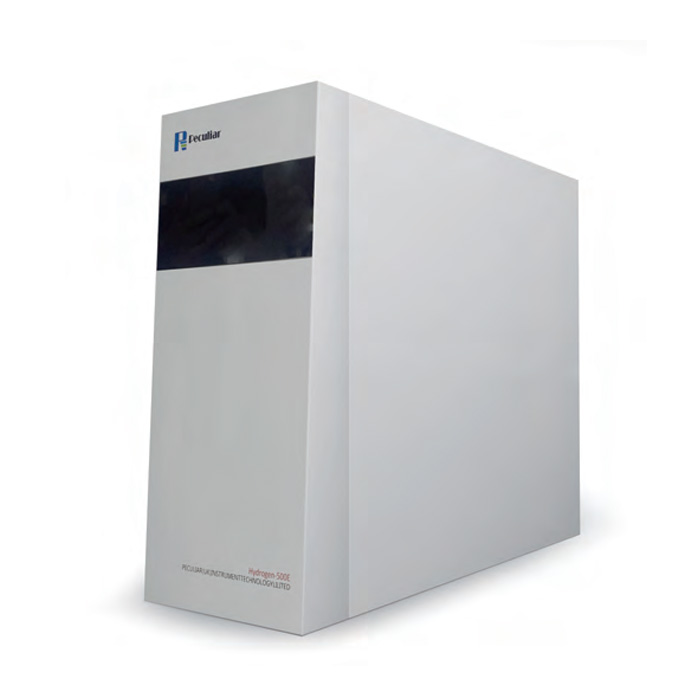

High-purity hydrogen generator-Hydrogen-500E

The Peculiar series of hydrogen generators can continuously and reliably produce hydrogen gas of extremely high purity, with a purity of >99.9995%. This eliminates the need for expensive and hazardous high-pressure hydrogen cylinders in the laboratory. The entire process only requires deionized water and power supply to generate hydrogen, and can operate continuously for 60 days with a single water refill, at a low cost. The safety and ease of use of the hydrogen generators make them a replacement for the dangerous high-pressure hydrogen cylinders.Hydrogen is produced on demand and in the right quantity, maintaining a safe storage volume of hydro gen.

MAIN TECHNICAL PARAMETERS

◎ Hydrogen Purity:99.9995%

◎ Hydrogen dew point：-65℃（About 3ppm）

◎ Hydrogen flow rate：300cc/min、500cc/min、1000cc/min

◎ Output pressure：Atmospheric pressure0-0.4Mpa High pressure0-1.5Mpa

◎ Stress stability：< 0.001MPa

◎ Power supply：220V±10%, 50Hz ◎ Power consumption：150W

◎ External dimensions：450×420×180mm 【Hydrogen-500（E） 】

◎ Net weight：About 14Kg 【Hydrogen-500（E） 】

◎ Water consumption：0.45L/day

INSTRUMENT FEATURES

◎ Adopt PEM Technology

◎ Directly electrolyze pure water without using alkali effectively protects the chromatography column.

Adopting the ion membrane developed by Peculiar in the UK; utilizing Nafion (permeation membrane

technology), it ensures more thorough hydrogen purification, producing hydrogen with a purity of 99.9995%, guaranteeing the reproducibility of results.

◎ The instrument uses British Peculiar silicone rubber rings (with low sulfur content) internally, effectively improving gas quality and ensuring stable GC baselines.

◎ Both pressure and flow are controlled by an integrated microcomputer.

◎ Automatic water level control, when there is a shortage of water, it automatically shuts down and refills wat er. When the Hydrogen-500(E) water level is below 15%, it is automatically refilled from an external water tan  k without the need to stop and add water. This effectively protects the electrolytic cell and extends its service life.

◎ Automatic leak detection

◎ Compact design, small footprint.

◎ Environmental filter, easy to install and operate;

◎ Compatible with GCs from any model or manufacturer.

APPLICATION SCENARIOS

◎ GC and GC-MS as carrier gases

◎ GC-FID/NPD(FTD)/FPD ◎ ICP-MS collision gas

◎ CVD semiconductor applications
