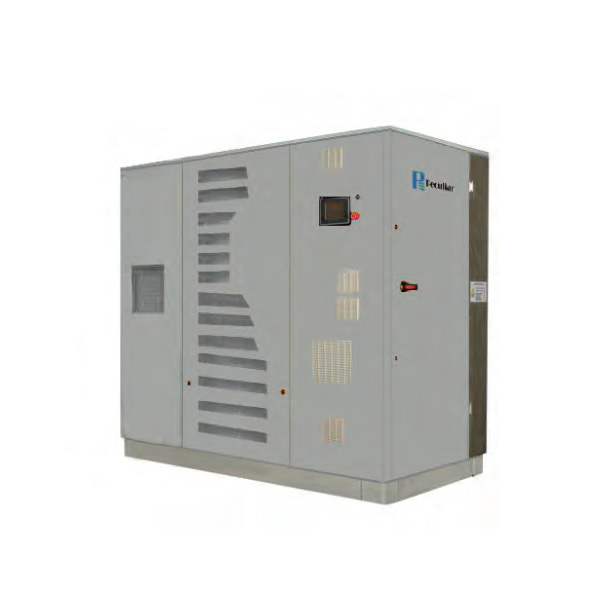

Hydrogen generator-HYDROGEN-50L

The Peculiar series of high-flow hydrogen generators can continuously and reliably produce hydrogen with extremely high purity, ranging from 99.9999% to 99.99999% (with an external purification device). This eliminates the need for expensive and hazardous high-pressure hydrogen cylinders in the laboratory, and the interruption of important analytical work due to cylinder replacement will no longer occur. Hydrogen can be generated simply with deionized water and power supply, featuring an integrated pure water system that automatically refills, making the cost very low. The safety and ease of use of the hydrogen generators make them a substitute for the dangerous high-pressure hydrogen cylinders. The Hydrogen-30L50L series hydrogen generators are the best choice for gases used in MOCVD or CVD semiconductor processes.

APPLICATION SCENARIOS

◎CVD and MOCVD fields

◎Hydrogen fuel cell

MAIN TECHNICAL PARAMETERS

◎Hydrogen Purity：99.9999-99.99999%(External Purification Device)

◎Hydrogen flow rate ：30L/min 50L/min

◎Output pressure：Atmospheric pressure 0.5MPa, high pressure 1.5MPa

◎Stress stability ：<0.001MPa

◎Power supply：380V+10% 50HZ

◎Power consumption：13kw(30L)20KW(50L)

◎Pure water demand：>2MΩ&3L/h

◎Hydrogen volume：<20L

◎Environmental temperature：1-40℃

◎Relative humidity：<85%

◎Altitude：<2000Rice

◎Dimensions：220x100x200(WxDxH cm)

◎Net weight：About 500kg (30L) About 600kg (50L)

INSTRUMENT FEATURES

◎The entire working process of the instrument is controlled by a program, with automatic constant Through serial nes, multiple sets can be used in parallel.

◎Using solid electrolyte (PEM) method to produce hydrogen, with ultra-pure water as raw material, solid polymer as the electrolyte, and precious metals as electrodes, an effective dehumidification device reduces the original humidity, maintaining stable purity.

◎Operation is convenient; simply turn on the power switch to start hydrogen production. After use, there's no need to release pressure; just turn off the power. It can be used continuously or intermittently, with a stable and non-decreasing hydrogen output.

◎Safe and reliable: Equipped with safety devices, electrolysis of ultrapure water to produce hydrogen, no corrosion, no pollution, with press ure control, automatic water shortage monitoring, automatic leak detection;

◎Equipped with a pure water system, it completes the preparation of large quantities of hydrogen gas after the intake of tap water.
