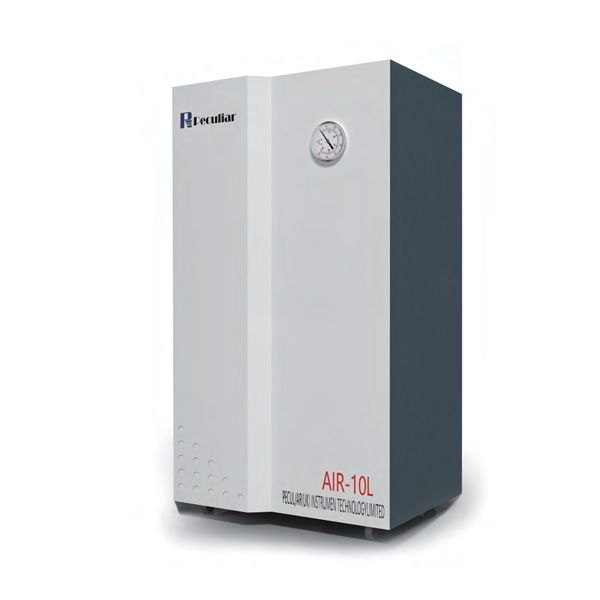

Full automatic air source-AIR-10L

Description:Using pressure swing adsorption modules to remove H2O and CO2, H2O/CO2 content is below0.5PPM.

Product model:AIR-10L

Details

MAIN TECHNICAL PARAMETERS

◎ Output flow: 0-10L/min (at 0.4MPa AIR-10L condition)

◎ Output pressure: 0-0.4MPa

◎ Pressure stability: <0.003MPa

◎ Noise: <54dB(A) Noise in energy-saving mode <20dB(A)

◎ Power consumption: 1500W

◎ External dimensions: 900×600×700mm

◎ Net weight: approximately 100Kg

INSTRUMENT FEATURES

◎ Using pure oil-free technology, the compressor produces pure compressed air.

◎ Using pressure swing adsorption modules to remove H2O and CO2, H2O/CO2 content is below0.5PPM.

◎ Automatic water release, no manual intervention required.

◎ Built-in conversion solenoid valve, can start the compressor at anytime

◎ Match each brand GC, ELSD as the air source

◎ For use with AIR2000S/5000S Grade Zero Air supply

◎ Match the gas for each brand of infrared spectrometer.
