High purity hydrogen generator（Gas GC expert）
Description:ultra high purity: the generated hydrogen is filtered through pecuriar palladium alloy membrane (patented technology). Because palladium alloy only allows hydrogen and its isotopes to pass through, the purity of generated hydrogen can be maintained to reach 99.99999%;

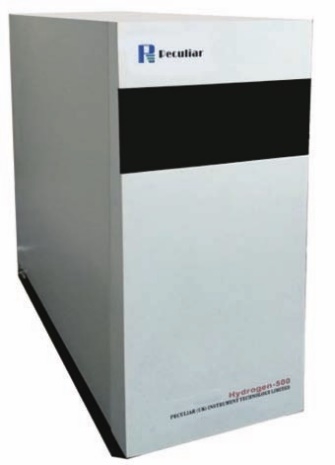

Product model:Hydrogen-500H
Main technical parameters
◎ Hydrogen Purity: 99.99999%
◎ hydrogen dew point: - 92 ℃ (about 10ppb)
◎ hydrogen flow: 0-500ml / min
◎ output pressure: 0-0.5mpa
◎ pressure stability: < 0.0001mpa
◎ power supply: 220V ± 10%, 50Hz
◎ power consumption: 300W
◎ overall dimension: 420 × three hundred × 360mm
◎ net weight: About 14kg
Instrument characteristics
◎ program control: the instrument is controlled by a single-chip computer and works automatically with constant pressure and current. The hydrogen flow can be adjusted automatically according to the dosage;
◎ easy to operate: it saves the labor of transporting steel cylinders and the pain of transporting steel cylinders. When in use, you only need to turn on the power switch to produce hydrogen. It can be used continuously or intermittently, and the hydrogen production is stable without attenuation. No need for desiccant (such as discolored silica gel, molecular sieve, etc.) and maintenance free;
◎ ultra high purity: the generated hydrogen is filtered through pecuriar palladium alloy membrane (patented technology). Because palladium alloy only allows hydrogen and its isotopes to pass through, the purity of generated hydrogen can be maintained to reach 99.99999%;
◎ safe and reliable: equipped with automatic water level safety device and overpressure control safety device, intelligently controlled by single chip microcomputer, sensitive and reliable.
