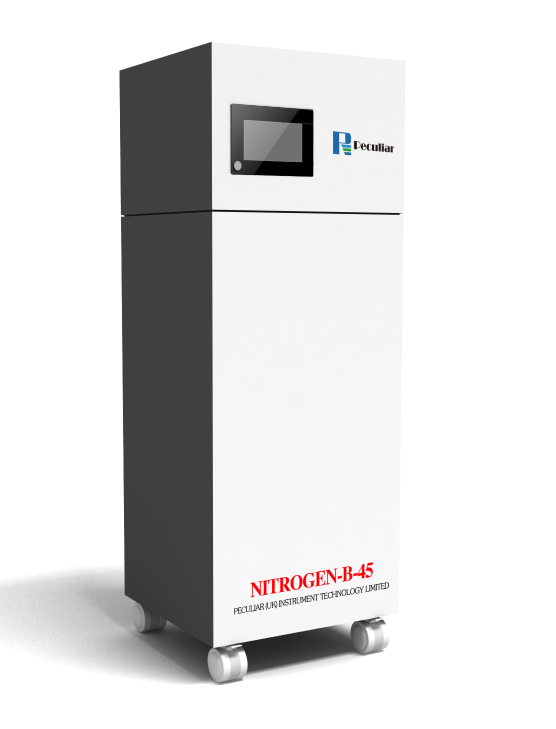

Nitrogen Gas Generator

technical specifications

Nitrogen module：

Principle of nitrogen production：PSA

Flow ：0-45L/min @117psi（8bar）

Work environment：5 ° C - 40 ° C humidity 80%

Use the highest altitude：2200m

the dew point：<-70℃

Purity：99.9-99.999%

grain：<0.01μm

Residual liquid：No

Phthalic acid：No

Noise：<40dB(A)

Startup purification time：20min

power：100W

Power requirements：220V 50HZ

Color touch screen display（NITROGEN-B-45S）：

Nitrogen flow display, nitrogen purity display, nitrogen pressure display, filter element replacement reminder display Mobile phone synchronous display, more convenient and concise to use.

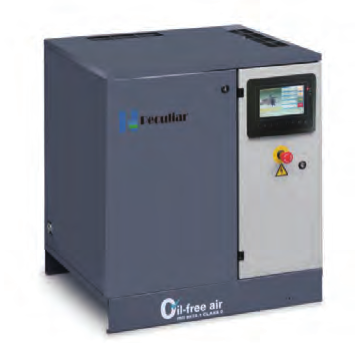

Compressor module：

Advantages of oil scroll air compressor 1) The same power is 30% higher than the efficiency of combined oil-free piston machine; 2) The service life is more than 1 time longer than that of oil-free piston cup machine, with low noise and low vibration Oil free compressor - developed jointly with Atlas of the United States, with significant advantages.

Pecuriar has specially designed a safe, efficient and convenient LC / MS nitrogen generator for pecuriar (UK) instrument technology limited according to the special requirements of LC / MS nitrogen flow, purity and pressure to produce clean and dry nitrogen with purity up to 99.999%, which is fully compatible with waters, Agilent / varia.

Ab SCIEX, thermo / Finnigan, shimatzu, Bruker and other brands use APCI and ESI interfaces for liquid quality combination. The nitrogen generator adopts carbon molecular sieve adsorption technology, which can continuously obtain clean, dry and phthalate free nitrogen without secondary purification. The nitrogen purity and flow are stable and the service life is long. The external scroll compressor improves the safety of air supply. The flow rate ranges from 0-45l / min, and nitrogen can be supplied to one or more instruments at the same time. Special models can be customized, and the maximum flow rate range can reach 200 L / min.
