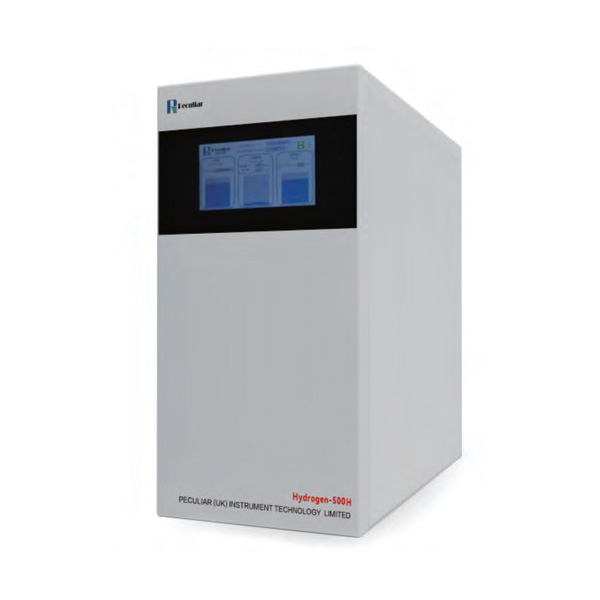

The Peculiar series ultra-high purity hydrogen generators can continuously and reliably produce hydrogen gas with a purity of over 9 9.99999%. This eliminates the need for expensive and hazardous high-pressure hydrogen cylinders in the laboratory, ending the inter ruptions to important analytical work caused by changing cylinders. With only deionized water and power supply, hydrogen can be g enerated, and a single water refill can sustain operation for 60 days, at a very low cost. The safety and ease of use of the hydrogen gen erators make them a substitute for the dangerous high-pressure hydrogen cylinders. The Hydrogen-500H series hydrogen generator s are the ideal choice for GC or GC/MS carrier gas. Compared to helium, using hydrogen as the carrier gas can increase the speed and sensitivity of analysis.
MAIN TECHNICAL PARAMETERS
◎ Hydrogen Purity：99.99999%
◎ Hydrogen dew point：-92℃（大约10ppb）
◎ Hydrogen flow rate：0-300ml/min 0-500ml/min
◎ Output pressure: Normal pressure 0-0.4Mpa High pressure 0-1.5Mpa
◎ Stress stability：< 0.0001MPa
◎ Power supply： 220V±10%, 50Hz ◎Power consumption： 300W
◎ External dimensions：450*420*180mm ◎Net weight: approximately 14Kg
INSTRUMENT FEATURES
◎ Program control: The instrument is controlled by a single-chip computer, operates fully automatically, maintains constant voltage and constant current, and the hydrogen flow can be automatically adjusted according to usage.
◎ Convenient operation: No need to transport or carry heavy cylinders, simply turn on the power switch to start hydrogen production. It can be used continuously or intermittently without any decrease in hydrogen output. No need for desiccants (such as: color-changing silica gel,molecular sieves, etc.), maintenance-free;
◎ Ultra-high purity: The generated hydrogen is filtered through a Peculiar palladium alloy membrane (patented technology). Due to the property of the palladium alloy that only allows hydrogen and its isotopes to pass through, the purity of the hydrogen produced can be ensured to consistently reach 99.99999%.
◎ Safe and reliable: Equipped with an automatic water level safety device and an overpressure control safety device, controlled intelligently by a single chip microcomputer, sensitive and reliable.
