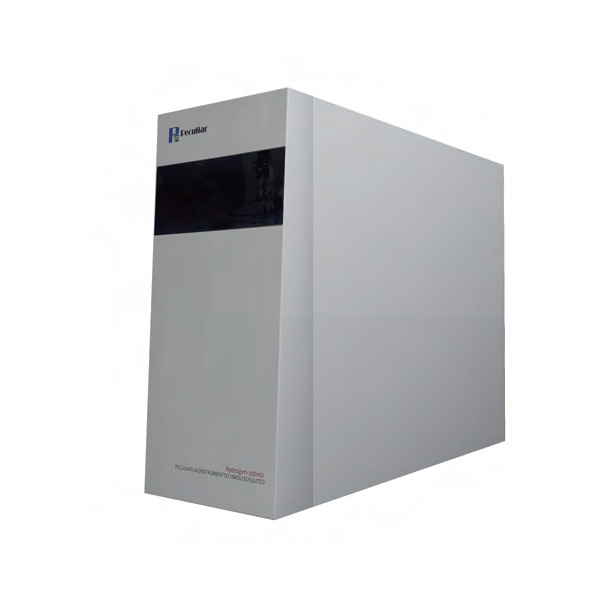

Ultrahigh Pressure Hydrogen Generator-HYDROGEN-300HT

APPLICATION SCENARIOS

◎High-pressure reactor

◎Hydrogen fuel cell

◎Energy Storage

MAIN TECHNICAL PARAMETERS

◎Hydrogen Purity ：99.9999%

◎Hydrogen flow rate：300ml/min

◎Output pressure ：0- 5MPa(300HD)，0-10 MPa(300HT)

◎Stress stability：< 0.001MPa

◎Power supply ：220V±10% 50HZ

◎Power consumption：300w

◎Pure water demand：＞2MΩ&1L/h

◎Environmental temperature ：1-40℃

◎Relative humidity：<85%

◎Altitude：＜2000米

◎Dimensions ：450×420×400mm（WxDxH  mm）

◎Net weight：About 20kg

INSTRUMENT FEATURES

◎Adopting PEM solid electrolyte technology;

◎Directly electrolyze pure water without using alkali effectively protects the chromatography column.

◎Adopting the ion membrane developed by Peculiar in the UK, using molecular sieve adsorption dehydration.

◎The instrument uses British Peculiar silicone rubber rings (with low sulfur content) internally, effectively improving gas quality;

◎Both pressure and flow are controlled by an integrated microcomputer.

◎Pressure rise time from 0 to 5 MPa is about 90 minutes, and from 0 to 10 MPa is about 180 minutes.

◎Automatic water level control, when there is a shortage of water, it automatically shuts down and refills water automatically. Hydrogen-300HD, (HT) when the water level is below 15%, it is automatically refilled by an external water tank, without the need to stop and add water. Effectively protects the electrolytic cell and extends its service life.

◎Automatic leak detection；

◎Compact design, takes up little space;

◎Environmental filter, easy to install and operate;

◎Electronic Pressure Display.
