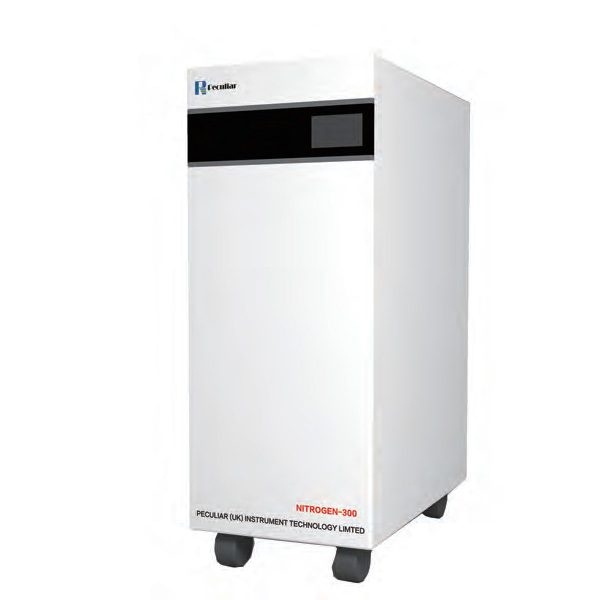

Zero-grade high-purity nitrogen generator for gas chromatography-NITROGEN-150/300/350/600/1200/Z-5L

The Peculiar high-purity nitrogen generator employs dual-tower pressure swing adsorption technology to produce a continuous stream of high-purity ni trogen. This technology utilizes the selective separation properties of carbon molecular sieves to filter out oxygen, carbon dioxide, and water vapor from  the air. The nitrogen generator consists of two carbon molecular sieve columns. The pre-treated compressed air enters and passes through the first carb on molecular sieve column, where oxygen, carbon dioxide, water vapor, and other impurities are adsorbed by the carbon molecular sieves, allowing only  nitrogen to pass through and enter the internal nitrogen storage tank. After a period of time, when the carbon molecular sieve column becomes saturate  d with adsorbed substances, the system automatically switches to the second column to continue the operation, while the first saturated column underg  oes rapid depressurization to release the adsorbed oxygen back into the air, thereby regenerating the column. The adsorption and purification regenerat ion process alternates between the two columns, allowing for the continuous production of clean, dry, high-purity nitrogen gas.

MAIN TECHNICAL PARAMETERS

◎Nitrogen Purity:  99.9999%

◎Nitrogen flow rate:150 300 600 1200 5000cc/min

◎Hydrocarbon content≤0.05ppm

◎Output pressure: 0-0.6Mpa

◎Power supply: 220V±10% 50Hz

◎Power consumption：750W

◎Environmental temperature： 1-40℃

◎Relative humidity： <85%

◎Dimensions：400×500×900mm

◎Net weight：About 44kg

INSTRUMENTFEATURES

◎Adopting intelligent microcomputer control with a single chip, flexible in operation;

◎Adopting dual-tower pressure swing adsorption with optimized control algorithms, nitrogen production efficiency is high.

◎Select the high-quality dedicated nitrogen molecular sieve from Peculiar in the UK: large adsorption capacity, high pressure resistance, and long service life.

◎Adopts unique pressing technology: makes molecular sieves less prone to pulverization, effectively extending their lifespan.

◎American Thomas oil-free compressors, reliable in use, effectively ensure the purity of nitrogen.

◎Adopting a dual tank buffer system ensures the stability of nitrogen output pressure and achieves the output of high purity nitrogen immediately upon startup.

◎The key components such as the exchange tower and gas storage tanks are all made of high-quality stainless steel materials, which are sturdy and durable.

◎Two-stage gas-water separator, two-stage pressure regulator, British Peculiar 0.01um precision filter, making the gas dr y and clean, better overall performance of the machine.

◎Overpressure safety protection device, overload protection device, ensuring absolute safety; ◎System automatic fault diagnosis mode, convenient for use and maintenance.

◎Adopting the UK Peculiar dedicated nitrogen molecular sieve, high purity nitrogen is obtained through pressure swing adsorption.

◎Adopt high-capacity HC desorber.

◎Can be placed modularly with zero-level air and hydrogen generator, saving laboratory space.
