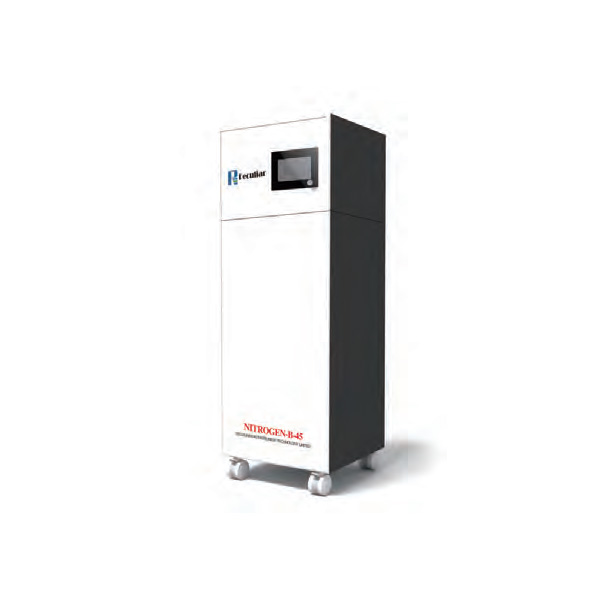

LC-MS Dedicated Nitrogen Generator(Carbon Molecular Sieve)-NITROGEN-B-45/85/100/200

Peculiar has designed a safe, efficient, and convenient LC/MS nitrogen generator specifically for the unique requirements of LCIMS nitrogen flow, pur ity, and pressure. It produces clean, dry nitrogen with a purity up to 99.999%, fully compatible with LC/MS interfaces of brands such as Waters, Agilen  t/varia, AB Sciex, Thermo/Finnigan, Shimatzu, and Bruker for both APCI and ESI applications. The nitrogen generator utilizes carbon molecular sieve a dsorption technology, eliminating the need for secondary purification, and continuously delivers clean, dry, phthalate-free nitrogen. The purity and flow rate of nitrogen are stable, and the service life is long. An external vortex compressor enhances the safety of air supply. The flow rate range is from 0-200L/min, capable of supplying nitrogen to one or multiple instruments simultaneous ly. Special models can be customized.

Nitrogen Module

◎Nitrogen production principle: PSA carbon molecular sieve exchange pressure swing adsorption.

◎Flow: 45L, 85L, 100L, 200L/min @ 116psi (8bar)

◎Work environment: 5°C-40°C humidity 80%

◎Using the highest altitude: 2200m

◎Dew point: <-70

◎Purity: 99.9-99.999%

◎Granules:<0.01 μm

◎No retained liquid.

◎Phthalic acid: None

◎Noise:<40dB(A)

◎Startup purification time:20min ◎Power:250W

◎Power requirements:220V 50HZ

◎Color touchscreen display(NITROGEN-B-45S):

◎Nitrogen flow display, nitrogen purity display, nitrogen pressure dis  play, filter replacement reminder display, mobile synchronization displ ay, making use more convenient and simple.

Applicable mass spectrometer manufacturers and models

NITROGEN-B-45

NITROGEN：19L/min@65psi

Dry Air：26L/min@110psi

Dry Air：28L/min@65psi

AB SCIEX LC-MS/MS（Models below 5500）

NITROGEN-B-45

NITROGEN：30L/min@65psi

Dry Air：50L/min@110ps

ShimadzuLC-MS/MS8045/8050/8060

NITROGEN-B-45

NITROGEN：45L/min@116psi

WATERS/Agilent/Thermo Fisher Scientific

NITROGEN：26L/min@65psi

Dry Air：52L/min@110ps

Dry Air：28L/min@65psi

AB SCIEX LC-MS/MS（Models below 5500）

NITROGEN：20L/min@80psi

Dry Air：50L/min@110psi

PE QSight
