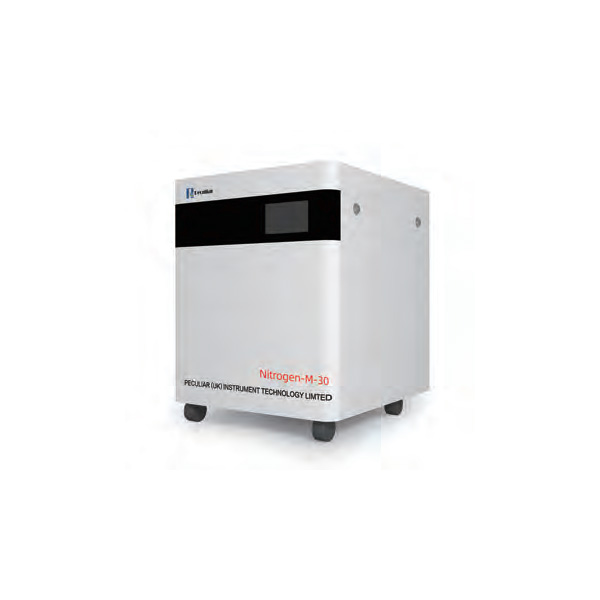

LC-MS Dedicated Nitrogen Generator Rreuiar (Hollow Fiber Membrane)-NITROGEN-M-24/30/60

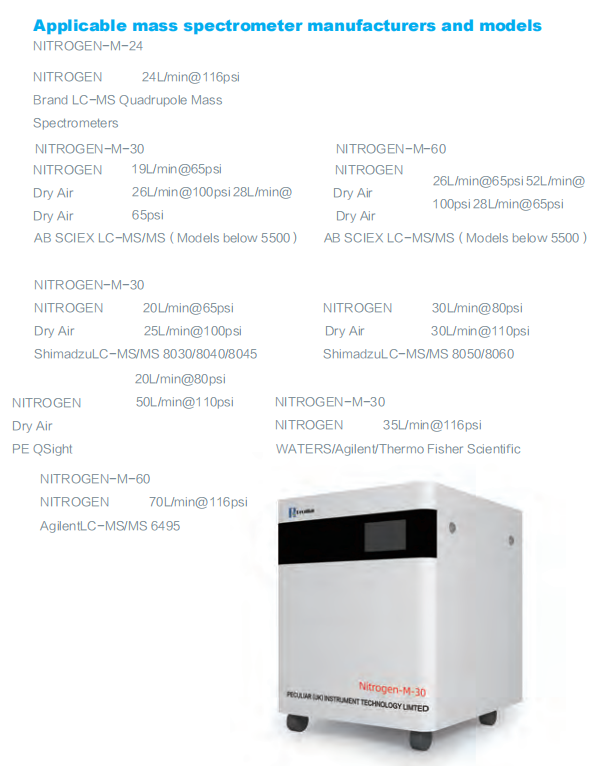

Peculiar has specially designed a safe, efficient, and convenient LC/MS nitrogen generator to meet the unique requirements of nitrogen flow, purity, and   pressure for LC/MS. It produces clean, dry nitrogen with a purity greater than 99.5%, fully compatible with LC/MS interfaces such as APCI and ESI from br ands like Waters, Agilent/Varian, AB, Sciex, Thermo/Finnigan, Shimadzu, and Bruker. The nitrogen generator utilizes membrane separation technology, eli minating the need for secondary purification, and continuously delivers clean, dry, phthalate-free nitrogen. The nitrogen purity and flow rate are stable, a  nd the service life is long. The built-in modular integrated oil-free compressor enhances the safety of air supply without relying on external compressed g as sources. The flow rate ranges from 24L/min, 35L/min, or 70L/min, with three models to choose from, capable of supplying nitrogen to one or multiple i nstruments simultaneously.

MAIN TECHNICAL PARAMETERS

◎ Traffic：24L、35L、70L/min @100psi（7bar）

◎ Working environment: 5 - 40 Humidity 80%

◎ Using the highest altitude: 2200m

◎ Dew point: <-55°C

◎ Granules：<0.01 μm

◎ No retained liquid.

◎ Phthalic acid: None

◎ Nitrogen Purity: 95-99.5%，

◎ Oxygen content <1%

◎ Noise: <54dB(A) Noise in Energy Saving (ECO) mode < 20dB(A)

◎ Startup purification time: 30 minutes

◎ Compressor: 2 built-in American Thomas compressors, output pressure of 160PSI, ensuring uninterrupted

operation for 8000 hours.。

◎ Dehumidification: Water storage drainage system, forced cooling module, 3-stage particle filtration drainage.

◎ Power：1600W

◎ Power requirements：220V 50Hz

◎ Dimensions: 900×600×700mm (NITROGEN-M-30) 1250×800×700mm (NITROGEN-M-60)

◎ Net weight: approximately 110Kg (NITROGEN-M-30) approximately 150Kg (NITROGEN-M-60)
