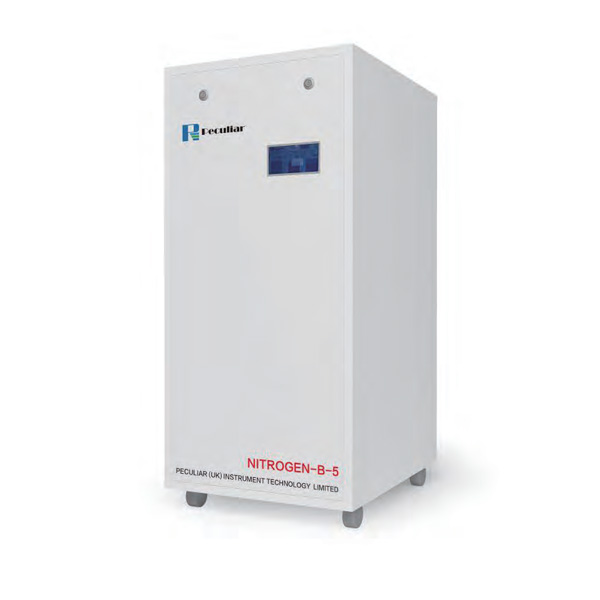

HPLC CAD Detector Specific Nitrogen Generator-NITROGEN-B-5/10
Description:Peculiar has designed a safe, efficient, and convenient nitrogen generator specifically for HPLC CAD/ELSD, producing clean, dry nitro gen with a purity of 99.9-99.999%, fully compatible with Thermo's CAD (Corona Aerosol Detector) and ESI interfaces.
Product model:NITROGEN-B-5/10
Peculiar has designed a safe, efficient, and convenient nitrogen generator specifically for HPLC CAD/ELSD, producing clean, dry nitro gen with a purity of 99.9-99.999%, fully compatible with Thermo's CAD (Corona Aerosol Detector) and ESI interfaces. The nitrogen g enerator utilizes pressure swing adsorption technology, eliminating the need for secondary purification, and continuously delivers cl ean, dry, phthalate-free ammonia. The nitrogen purity and flow rate are stable, with a long service life. The built-in modular integrate d oil-free compressor enhances the safety of air supply, eliminating the need for external compressed air sources. The flow rate rang es from two models, 5L/min or 10L/min, capable of supplying nitrogen to one or multiple instruments simultaneously.
MAIN TECHNICAL PARAMETERS
◎ Traffic：0-5L（10L）/min @100psi（7bar）
◎ Work environment: 5 - 40 humidity 80%
◎ Purity：99.999%
◎ Using the highest altitude：2200m
◎ Dew point：<-55℃
◎ Granules：<0.01μm
◎ Retained liquid： None
◎ Phthalic acid: None
◎ Noise: <50dB(A)
◎ Startup purification time: 30 minutes
◎ Power：700W
◎ Power requirements：220V 50Hz
◎ Size：550×500×800mm （Nitrogen-B-5）550×500×900mm（NITROGEN-B-10）
◎ Net weight: approximately 45Kg (NITROGEN-B-5) approximately 50Kg (NITROGEN-B-10)
