HPLC ELSD Detector Specific Nitrogen Generator
Description:Peculiar has designed a safe, efficient, and convenient nitrogen generator specifically for LC ELSD nitrogen flow, purity, and pressure requirements. The nitrogen generator produces clean, dry nitrogen with a purity of 99.9-99.999%, fully compatible with LC ELSDs fr om brands such as Waters, Agilent/Varian, Thermo, Shimadzu, and PE.

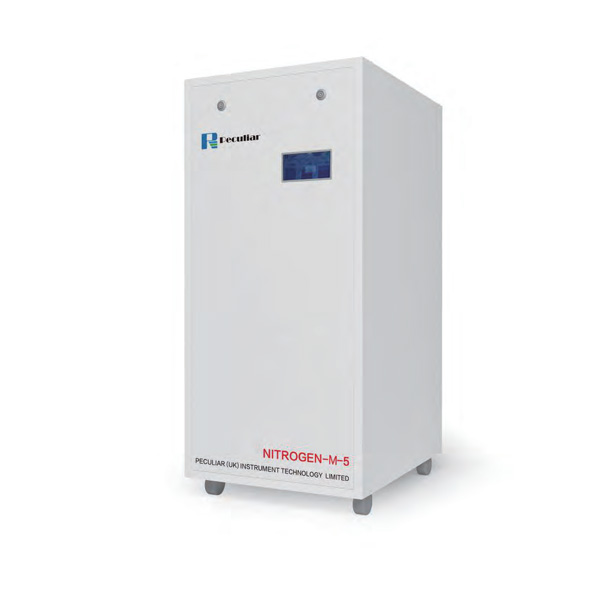

Product model:NITROGEN-M-5/10
Peculiar has designed a safe, efficient, and convenient nitrogen generator specifically for LC ELSD nitrogen flow, purity, and pressure requirements. The nitrogen generator produces clean, dry nitrogen with a purity of 99.9-99.999%, fully compatible with LC ELSDs fr om brands such as Waters, Agilent/Varian, Thermo, Shimadzu, and PE. Utilizing exchange adsorption technology, the generator eli minates the need for secondary purification, providing a continuous supply of clean, dry, phthalate-free nitrogen. The nitrogen's pur ity and flow rate are stable, ensuring a long service life. The built-in modular integrated oil-free compressor enhances the safety of a ir supply, eliminating reliance on external compressed air sources. The flow rate ranges from two models, 5L/min or 10L/min, and ca n supply nitrogen to one or multiple instruments simultaneously.
MAIN TECHNICAL PARAMETERS
◎ Traffic：0-5L（10L）/min @100psi（7bar）
◎ Work environment: 5 - 40 humidity 80%
◎ Purity：99.9%
◎ Using the highest altitude：2200m
◎ Dew point：<-55℃
◎ Granules：<0.01μm
◎ Retained liquid：None
◎ Phthalic acid: None
◎ Noise: <50dB(A)
◎ Startup purification time: 30 minutes
◎ Power：700W
◎ Power requirements：220V 50Hz
◎ Size：550×500×800mm （Nitrogen-M-5）550×500×900mm（NITROGEN-M-10）
◎ Net weight: approximately 45Kg (NITROGEN-M-5) approximately 50Kg（NITROGEN-M-10）
